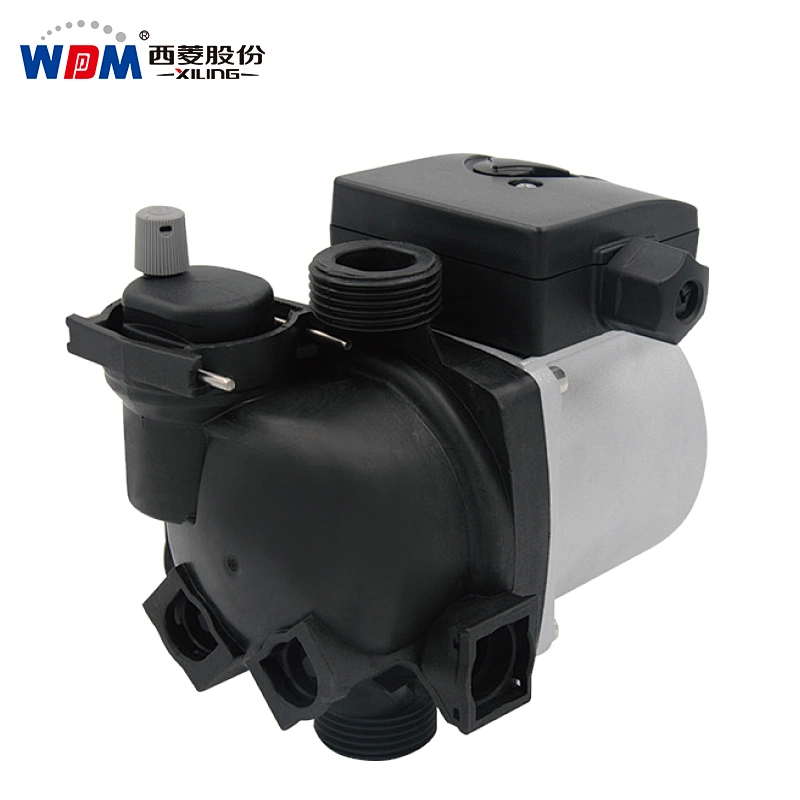

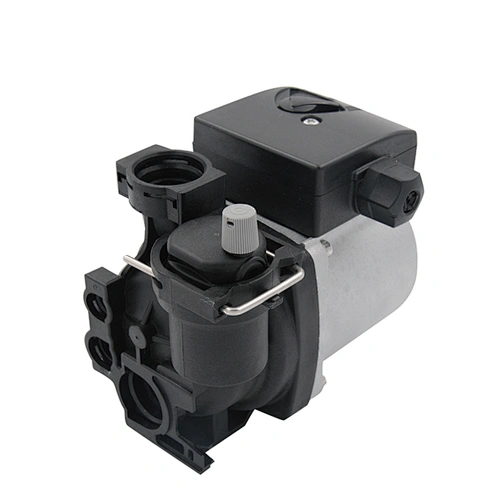

Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump
Gas hanging boiler pump

Gas hanging boiler pump

Model NO.
25PBG-7-B
Price:
USD 20.70-20.70 / sets
Delivery:
FOB
Minimum order quantity:
100 sets
Supply Ability:
50000 sets / Month
Country of Origin:
NINGBO or SHANGHAI
Quantity:
  • Application:Commercial Buildings
  • Application:Family Homes
  • Application:HVAC OEM
  • Application:Industrial Boilers
  • Application:wastewater treatment
  • Application:Water Treatment Solutions
  • Power Source:Electric
  • Structure:Single-stage Pump
  • Certification:ce
  • Place of Origin:CN
  • Brand Name:WDM
  • Model Number:25PBG-7-B
  • Pressure:7m
  • Outlet Size:0.75inch
  • Voltage:220V
  • Power:130W

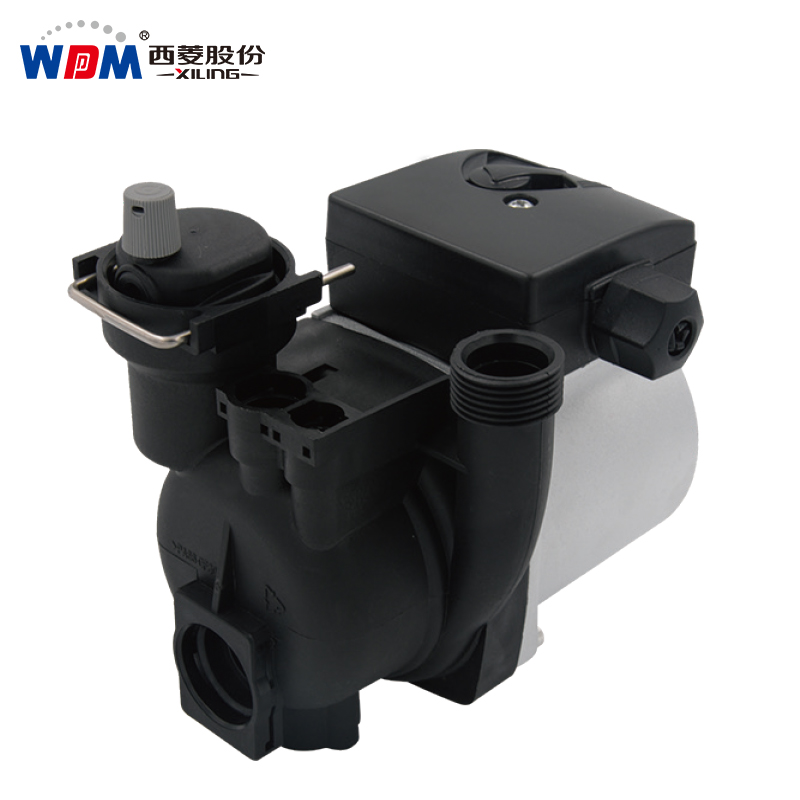

  • Product name:Gas hanging boiler pump

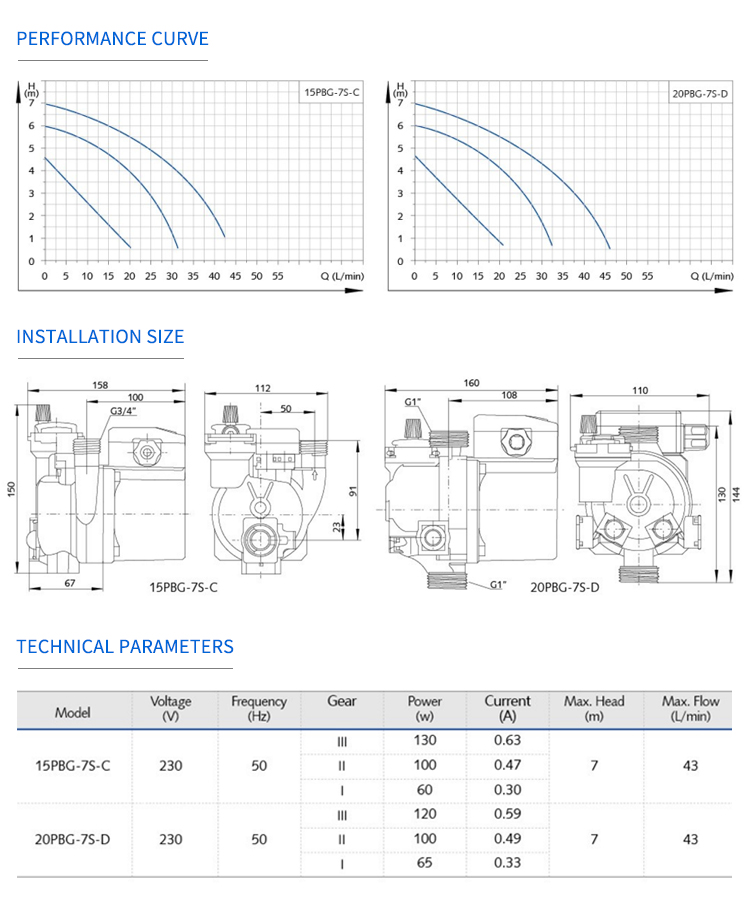

  • Model:20PBG-7S-D

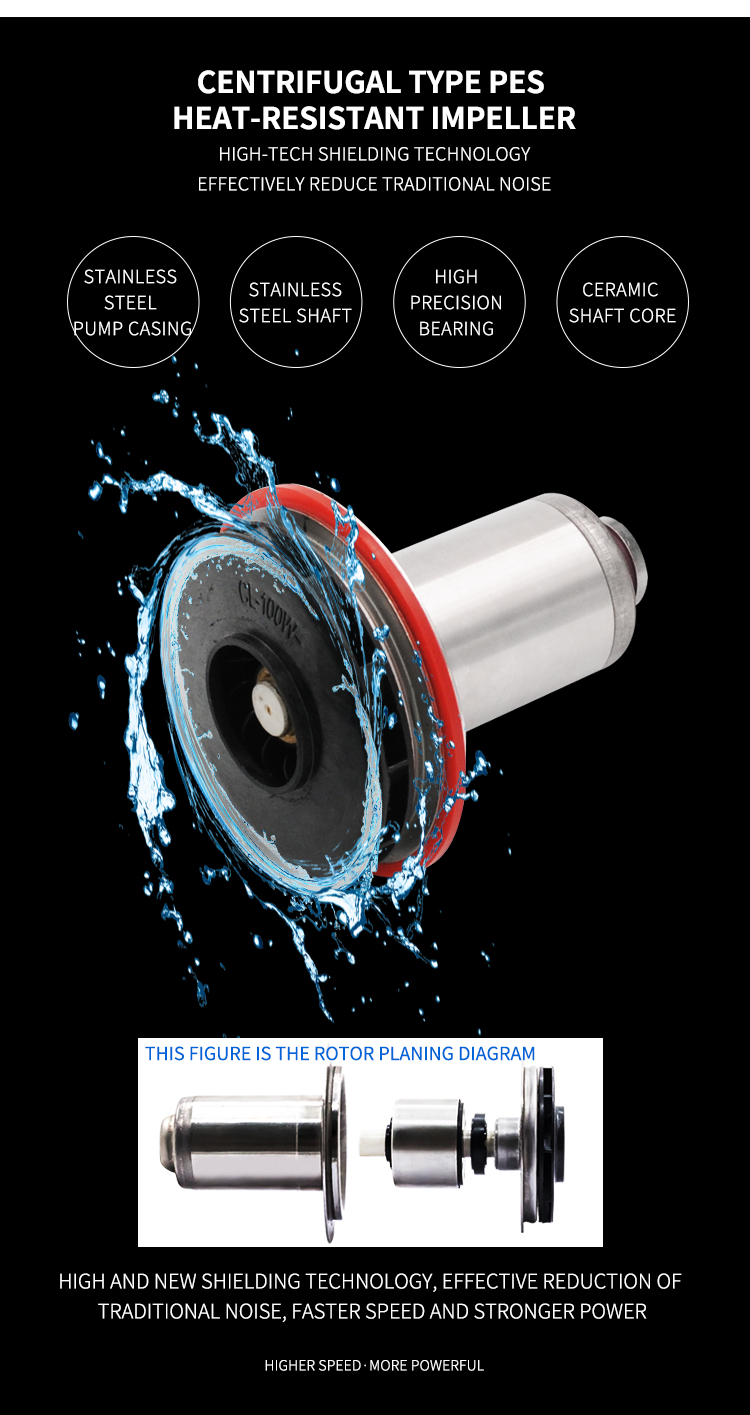

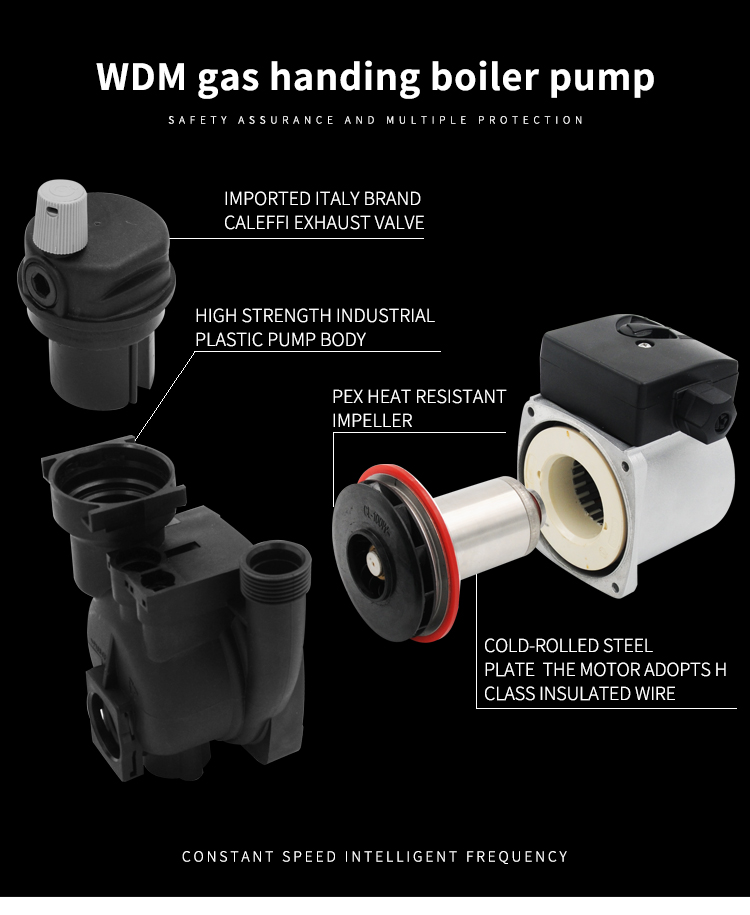

  • Impeller:PES heat resistant impeller
  • exhaust valve:Imported Italy brand CALEFFI
  • Power:120W
  • Max.head:7m
  • Max.flow:43L/min
  • Voltage:220V
  • Outlet dia:0.75inch
  • Warranty:1 Year

PRODUCTION INTRODUCTION

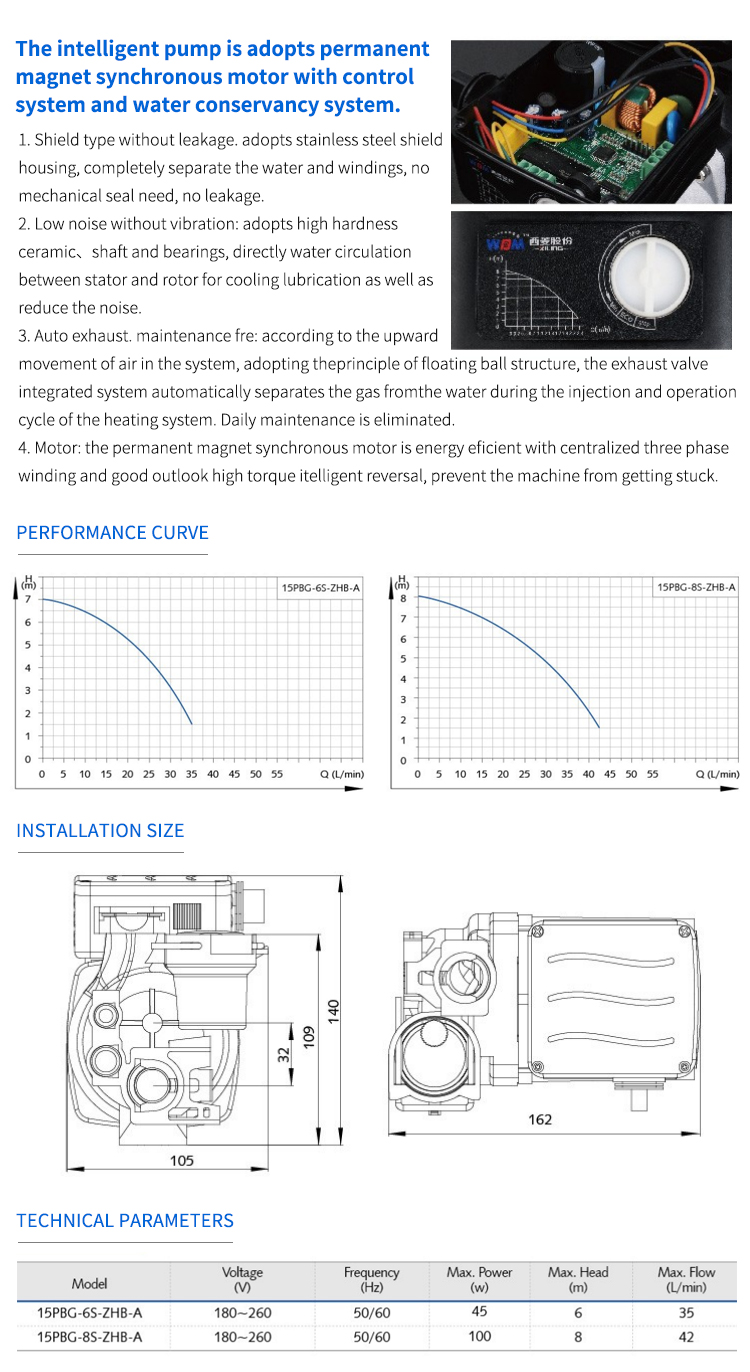

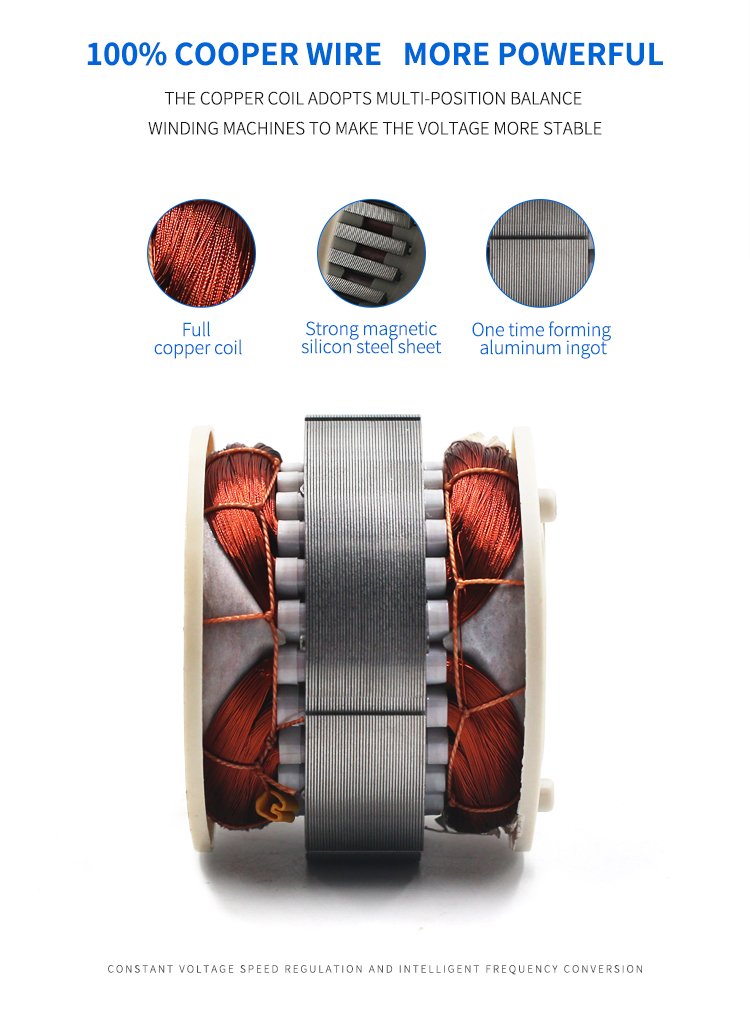

With stainless steel shield housing,compelety separate the water and coil windings, no mechanical seal need,no leakage, with high tensile porcelain bearing and shaft directly water cycle between stator and rotor to cool the system and lubricate the bearing and lower the noise, 30 thousand hours long service life with easy maintenance.

FEATURES

1.Shield type without leakage 2. Low noise without vibration

3. No corrosion and rust 4.Auto output ,free maintenance

APPLICATION FIELDS

The pump is applied to water boosting and recycling under 100 Centigrade , and auto . Output gas, mainly used in Gas hanging boiler and other ground heating system.

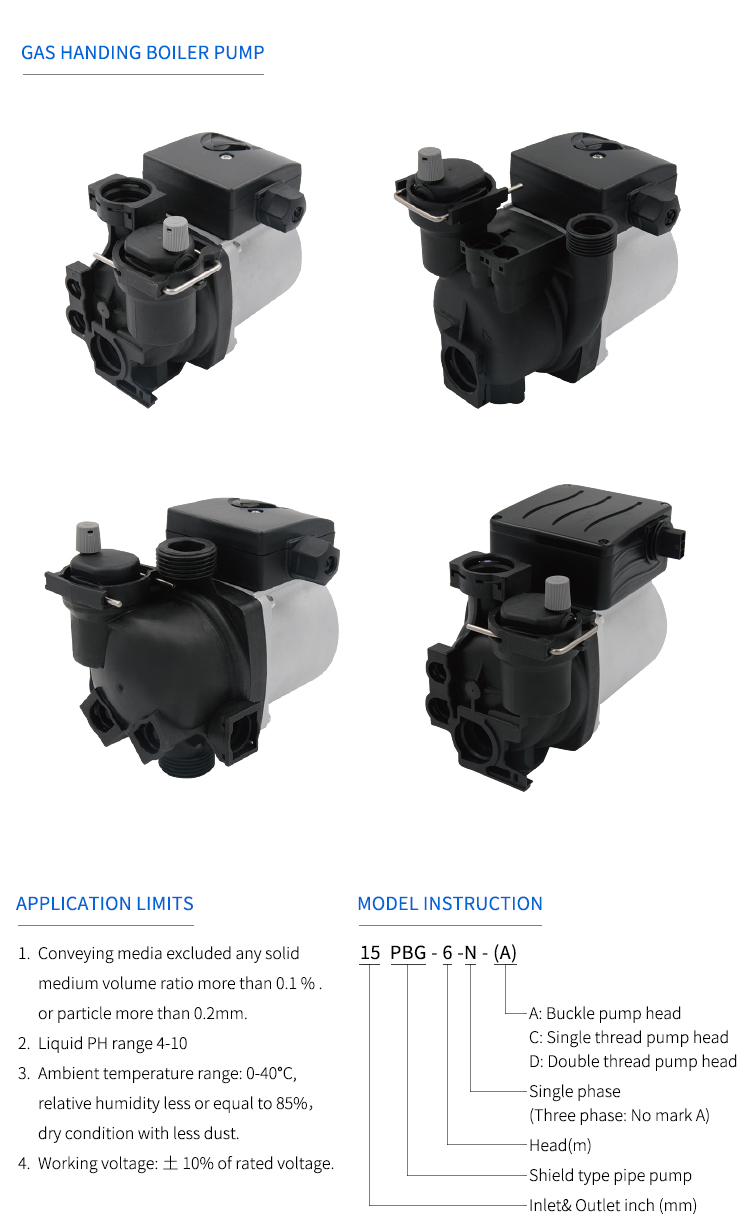

APPLICATION LIMITS

1.Conveying media excluded any soild medium volume ratio more than 0.1%,or particle more than 0.2mm.

2.Liquid PH range 4-10.

3.Ambient temperature range :0-40°C, relative humidity less or equal to 85%,dry condition with less dust.

4.Working voltage : 10% of rated voltage.
