- Usage:Water
- Pressure:High Pressure

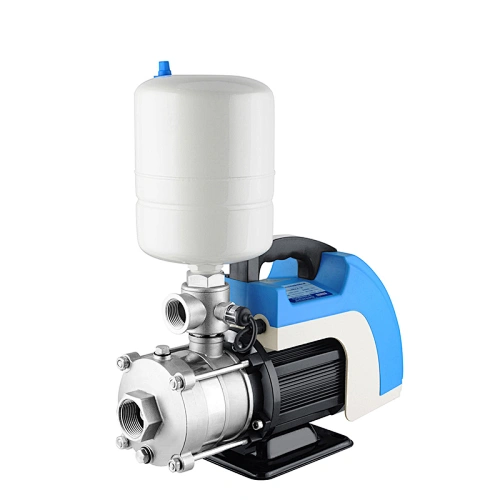

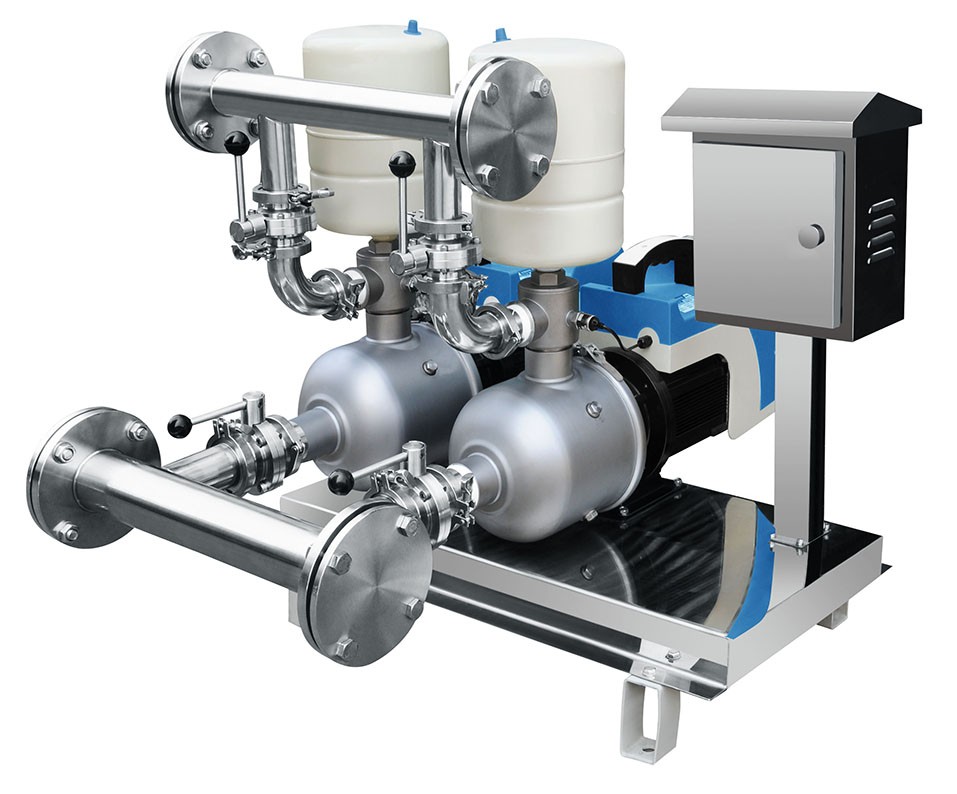

- Product name:Water Pump
- Material:Stainless Steel 304
- Structure:Multistage Pump
- Place of Origin:CN;ZHE
- Brand Name:WDM
- Model Number:2XL-25WHBL4-30
- Outlet Size:2inch
- Voltage:220V/50HZ
Product Description
PRODUCT INTRODUCTION

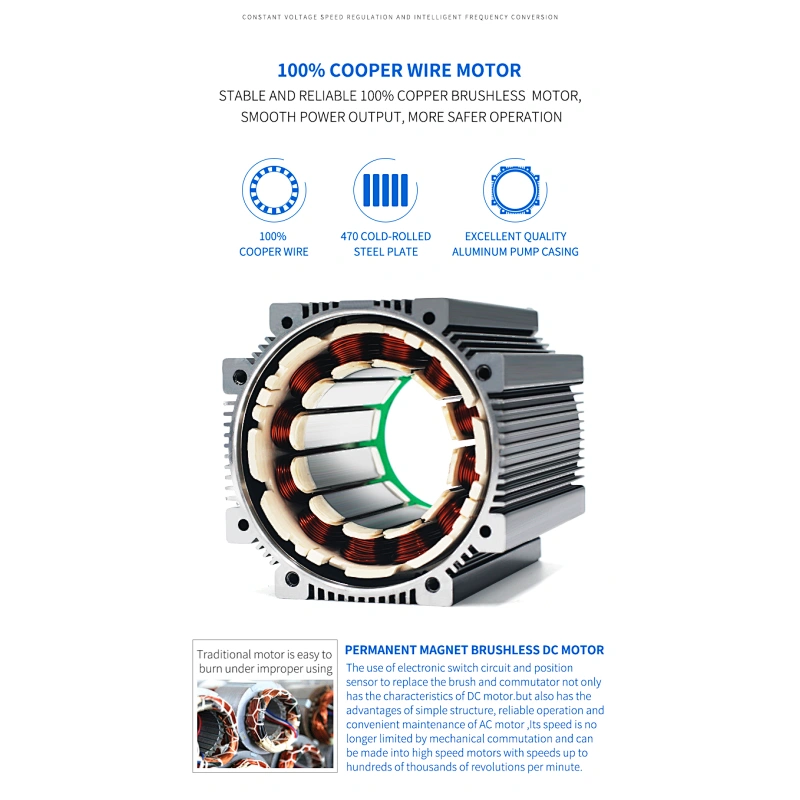

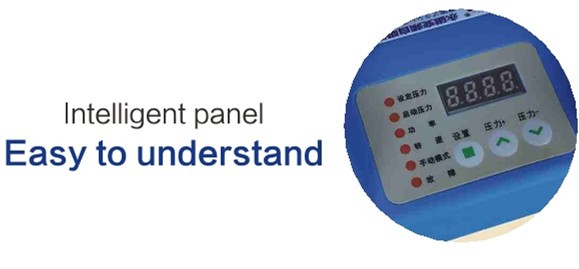

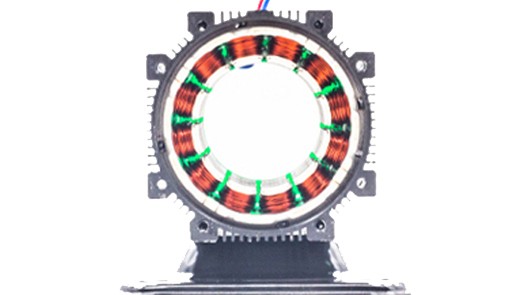

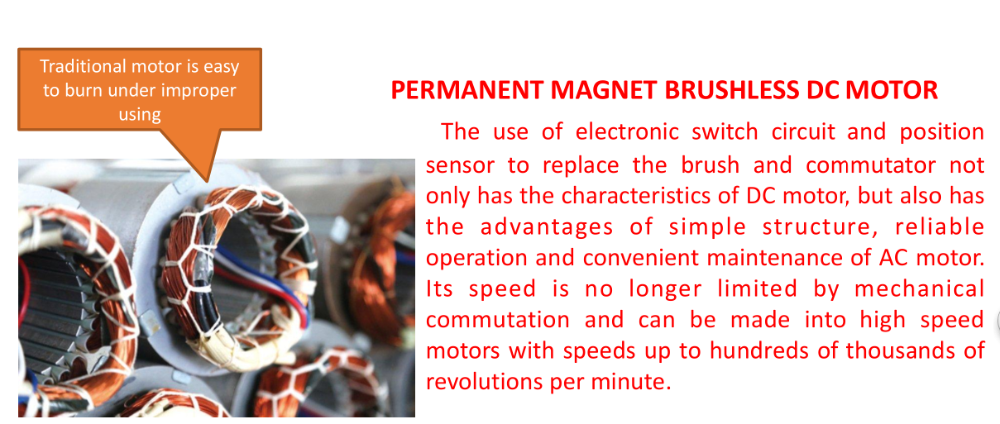

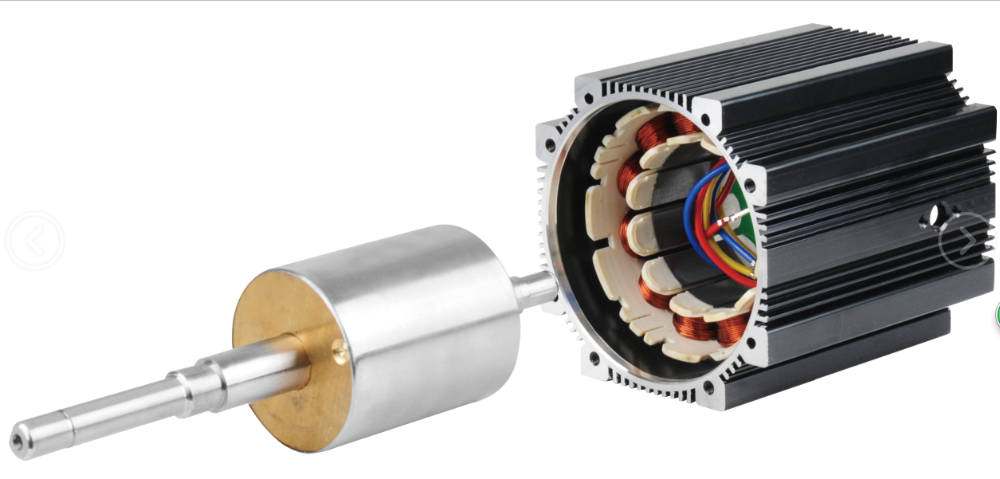

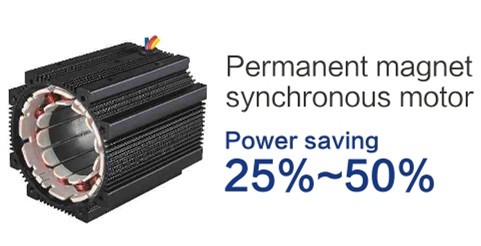

The pump adopts permanent magnet brushless motor.import chips.high precision pressure sensor.the new high-tech products combined with advanced electronic control technology.the real realizational of the telligent frequency conversion.constant pressure control speed .energy efficient.The operation of setting is very simple .no need professional people debugging .everyone can do .Let you stay in the star hotels upscale feel
APPLICATION FIELDS
Has a wide range of uses in family water supply and industrial construction.Can be used as :liquid transport and cycle pressurization in the field of light industry.family water supply .it is also widely used in cooling systems and air condistioning systems ,single-family villa.townhouse.concentrated residential.small district.school.smail hotel.
inn.small office building and so on family and small commercial water supply and pressurization.
APPLICATION LIMITS
Thin.clean.no condensation .non-flammable,non-explosive liquid
.Excluded solid particles or fibers liquid,
Water must be clean.the volume ratio of solid impurities is not more than
0.1%.and the particle size is not more than 0.2mm.
Liquid temperature <70°C.
Ambient temperature :0°C.-40°C.
PH value :6.5-8.5
Ralative humidity:Max 85%(RH)

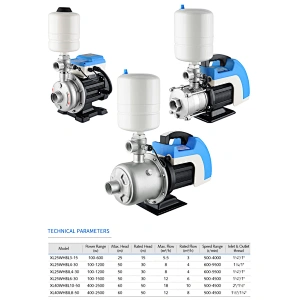

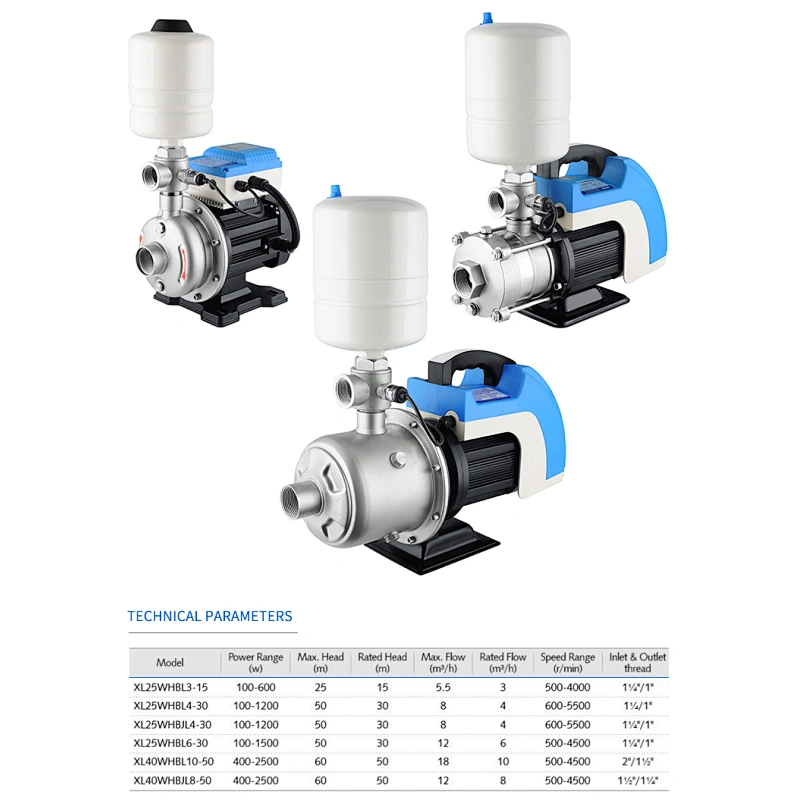

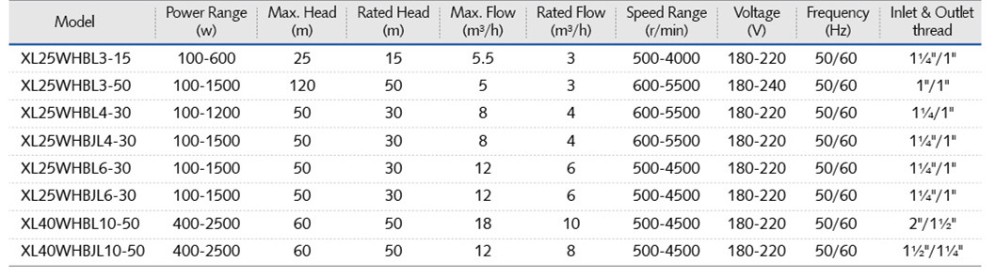

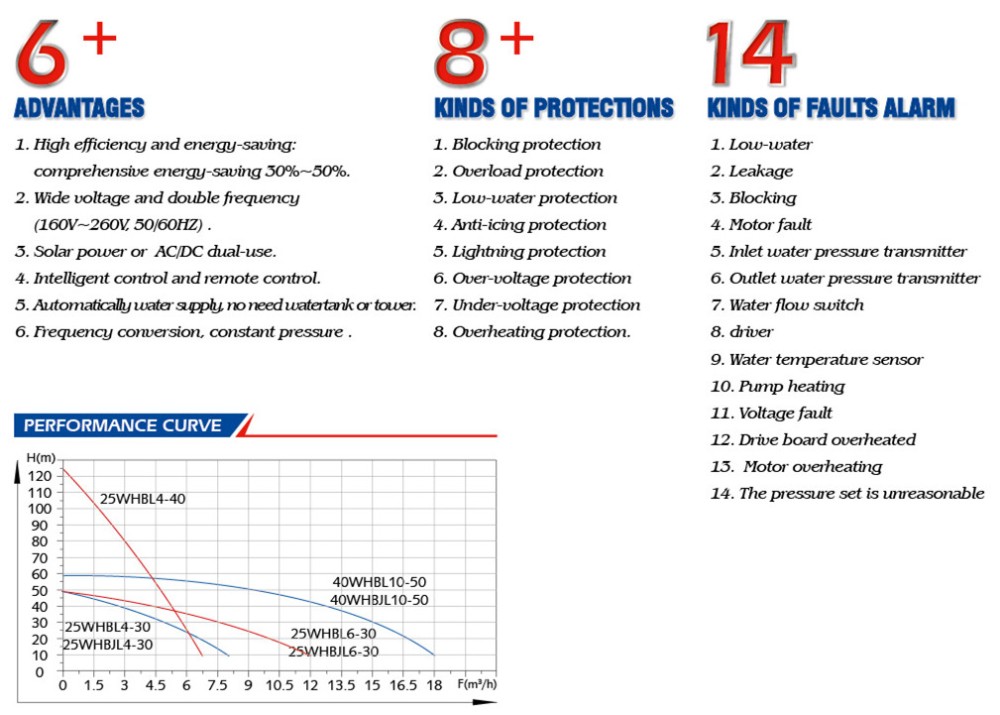

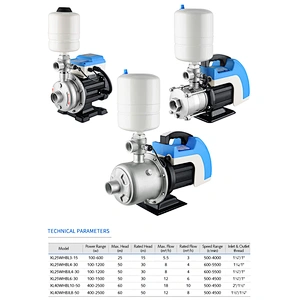

TECHNICAL PARAMETERS

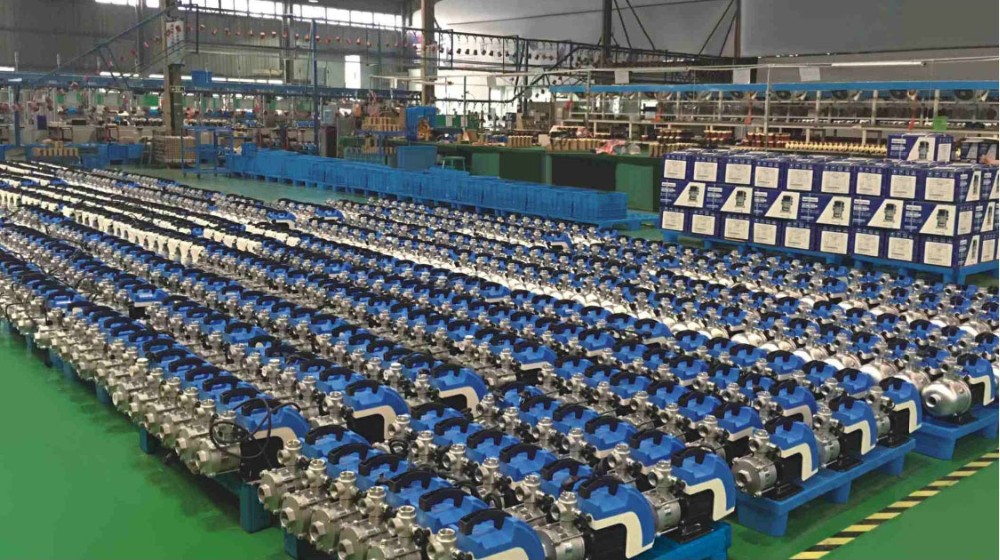

WORKSHOP
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
