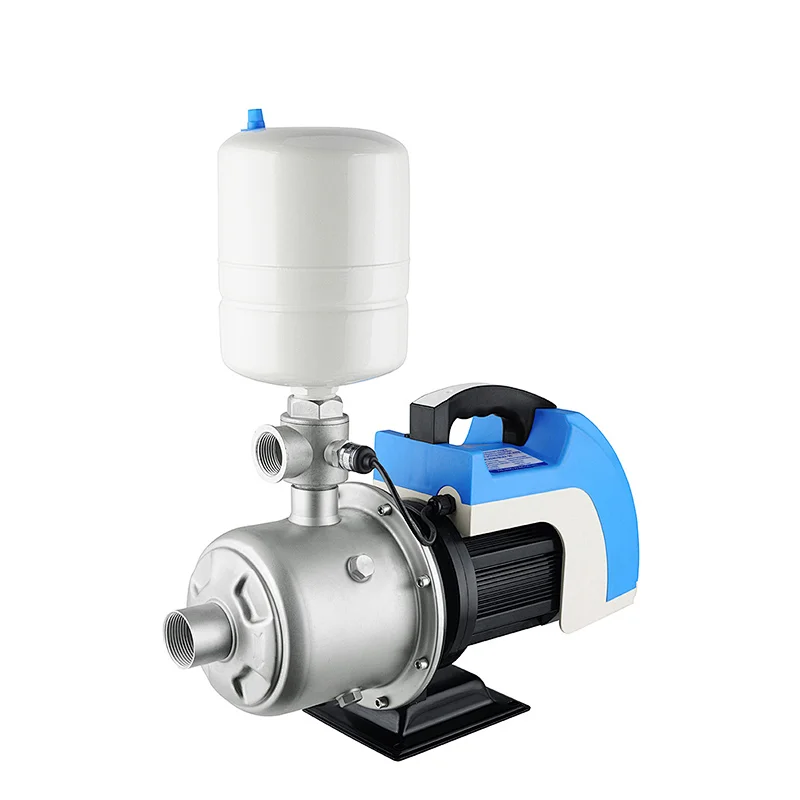

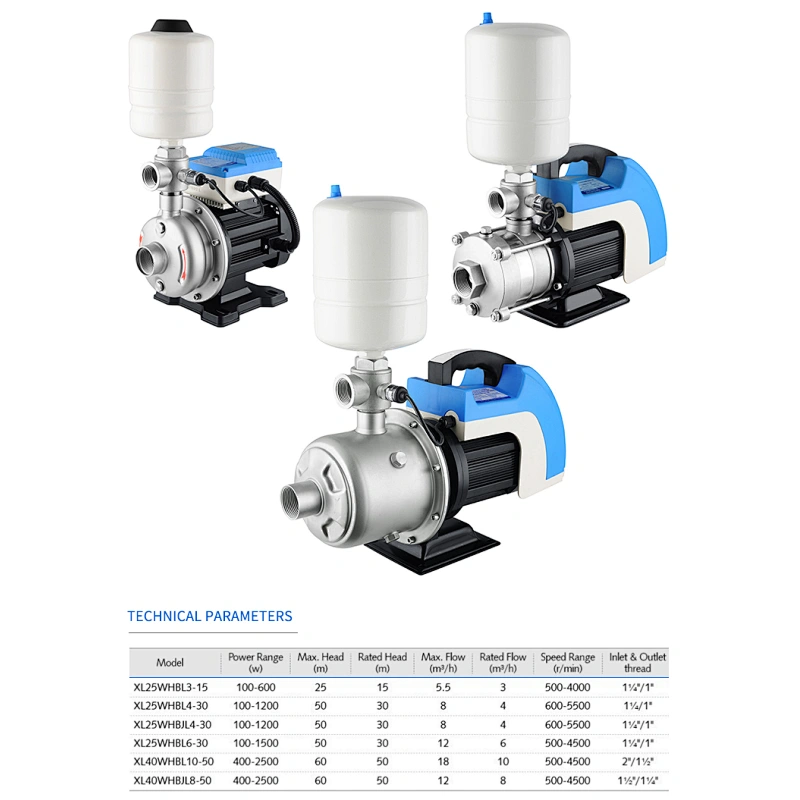

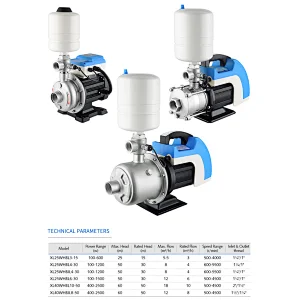

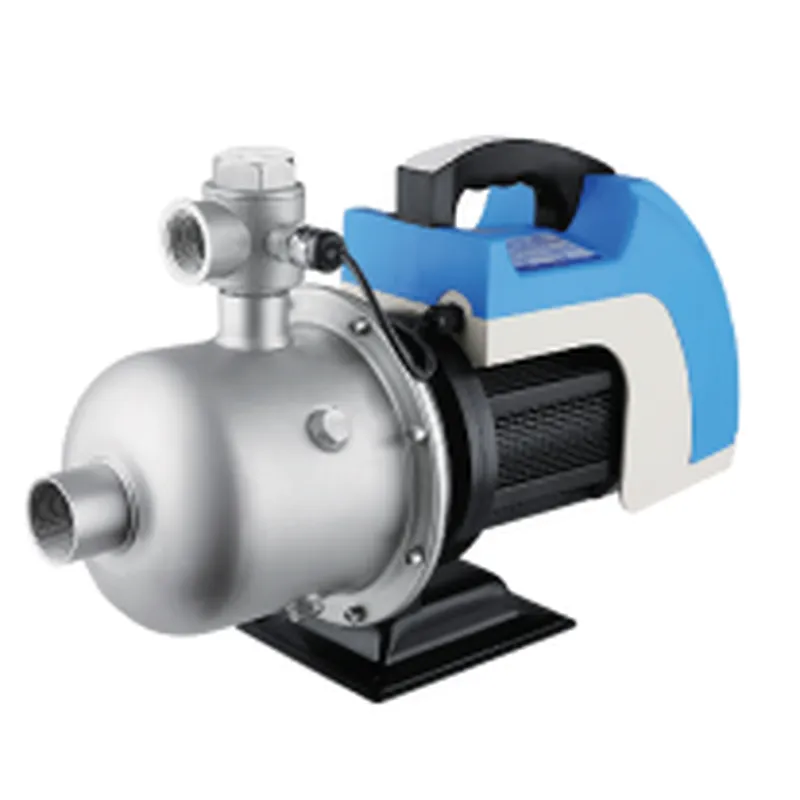

- Product name:intelligent self-priming centrifugal pump
- Model:XL40WHBL10-50
- Voltage:220V
- Speed:500-4500r/min
- Head:60m
- Flow rate:18m3/h
- Material:Stainless Steel

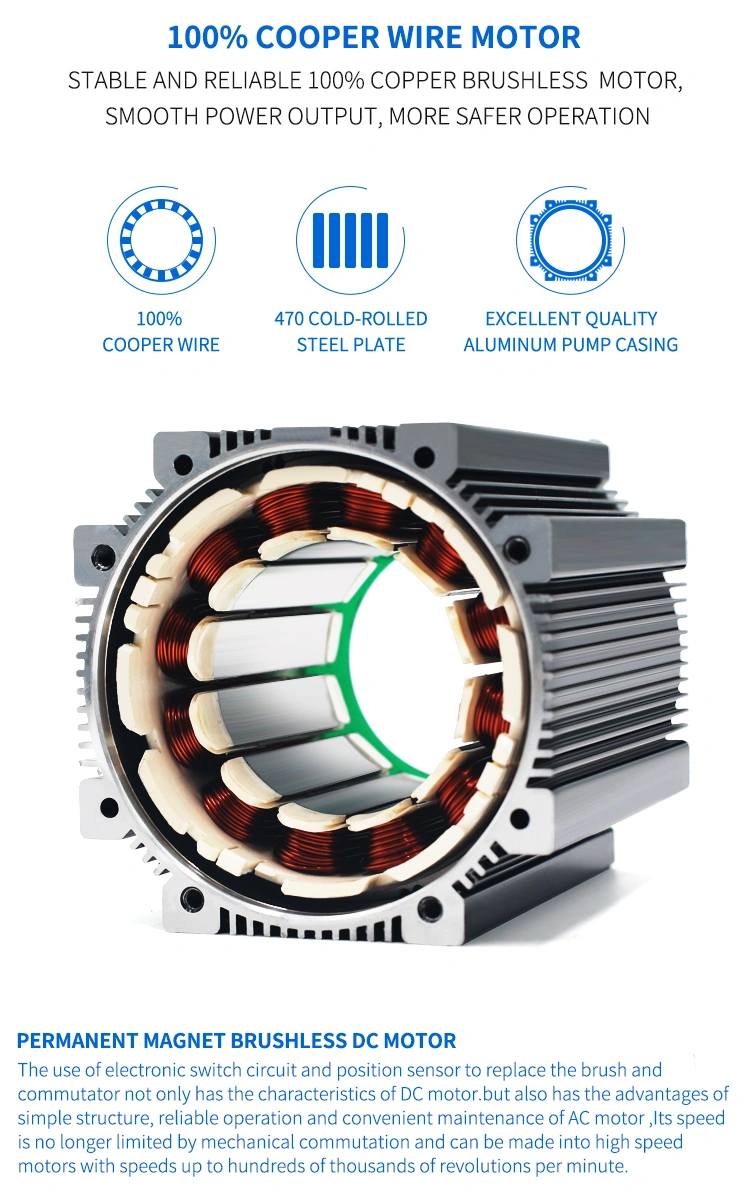

- Motor:Permanent Magnetic SYnchronous Motor

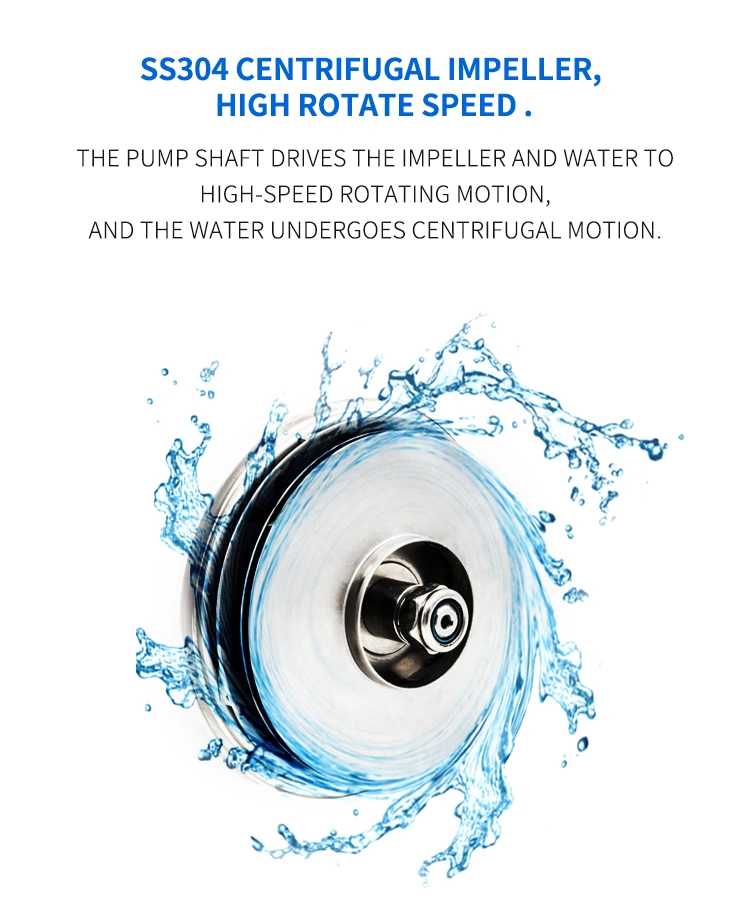

- Impeller:Stainless steel
- Warranty:2 Years
- Application:Commercial Buildings
- Application:Family Homes
- Application:Industrial Boilers
- Application:Irrigation and Agriculture
- Application:Marine
- Application:Water Treatment Solutions
- Power Source:Electric
- Structure:Single-stage Pump
- Certification:ce
- Place of Origin:CN;ZHE
- Brand Name:WDM
- Model Number:XL40WHBL10-50
- Horsepower:0.5HP-3.3HP
- Pressure:constant pressure
- Outlet Size:1.5inch
- Voltage:180V-250V
- Power:400-2500W
PRODUCT INTRODUCTION

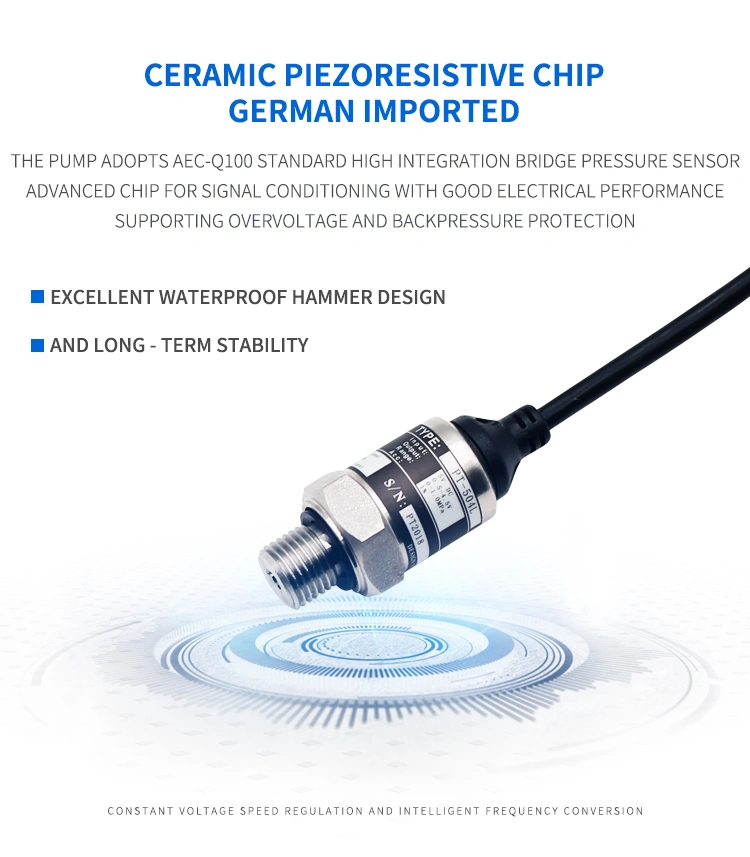

The pump adopts permanent magnet brushless motor,import chips ,high precision pressure sensor, The new high-tech products combined with advanced electronic control technology, the real realization of the intelligent frequency conversion ,constant pressure control speed ,energy efficient .The operation of setting is very simple .no need professional people debugging .everyone can do ,Let you stay in the star hotel's upscale feel.
APPLICATION
The series of pumps is a new type of saving-energy high-efficient household pump.Widely used in family life take water .take water in well ,tap wate boost pressure,garden irrigation, vegetable greenhouses water supply. Especially for water pressure hot water pipe pressurizationm, to prevent the phenomenon of water supply will be hot or will be cold.
6+ ADVANTAGES
1.High efficiency and energy-saving .comprehensive energy-saving 30%-50%.
2.Wide voltage and double frequency (160V-260V,50/60HZ).
3.Solar power or AC/DC dual -use.
4.Intelligent control and remote control .
5.Automatically water supply,no need watertank or tower.
6.Frequency conversion,constant pressure.

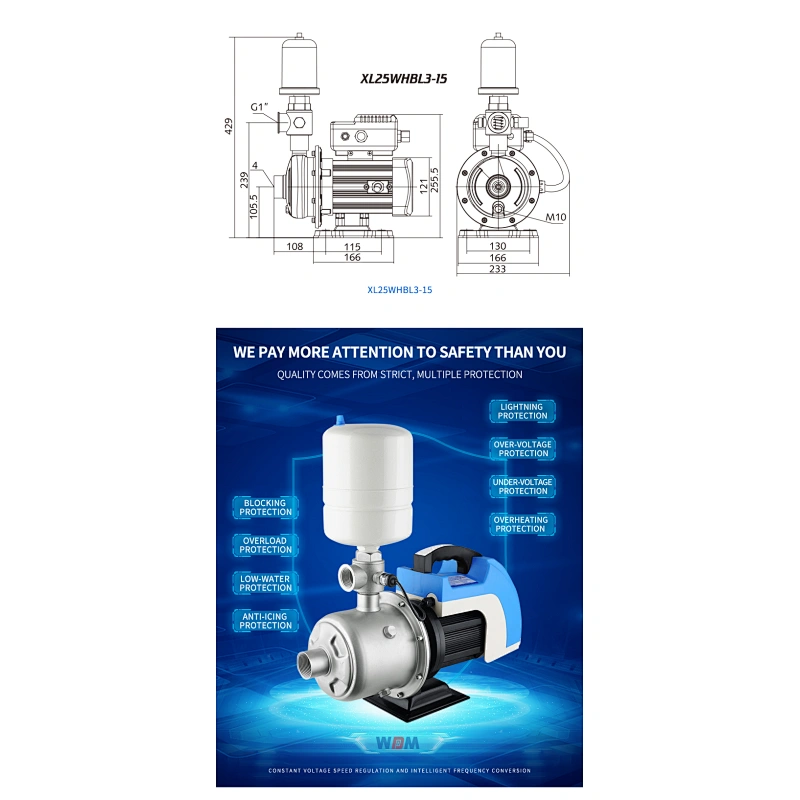

14+ KINDS OF FAULTS ALARM
1. Low-water 2. Leakage 3.Blocking 4.Motor fault 5. Inlet water pressure transmitter
6. Outlet water pressure transmitter 7. Water flow switch 8. Driver 9.Water temperature sensor
10. Pump heating 11. Voltage fault 12. Drive board overheated 13 .Motot overheating 14. The pressure set is unreasonable
