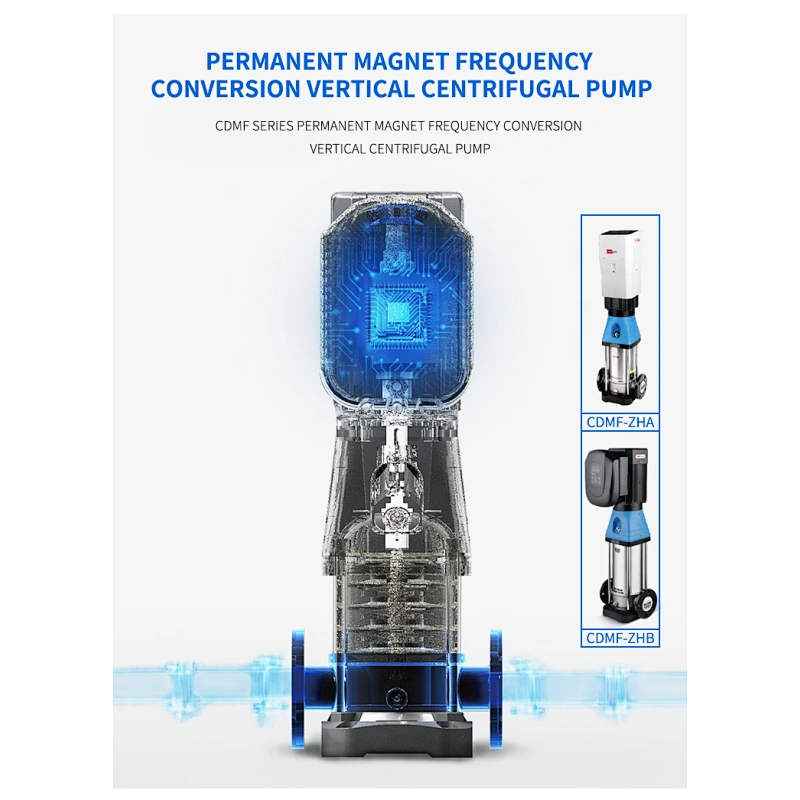

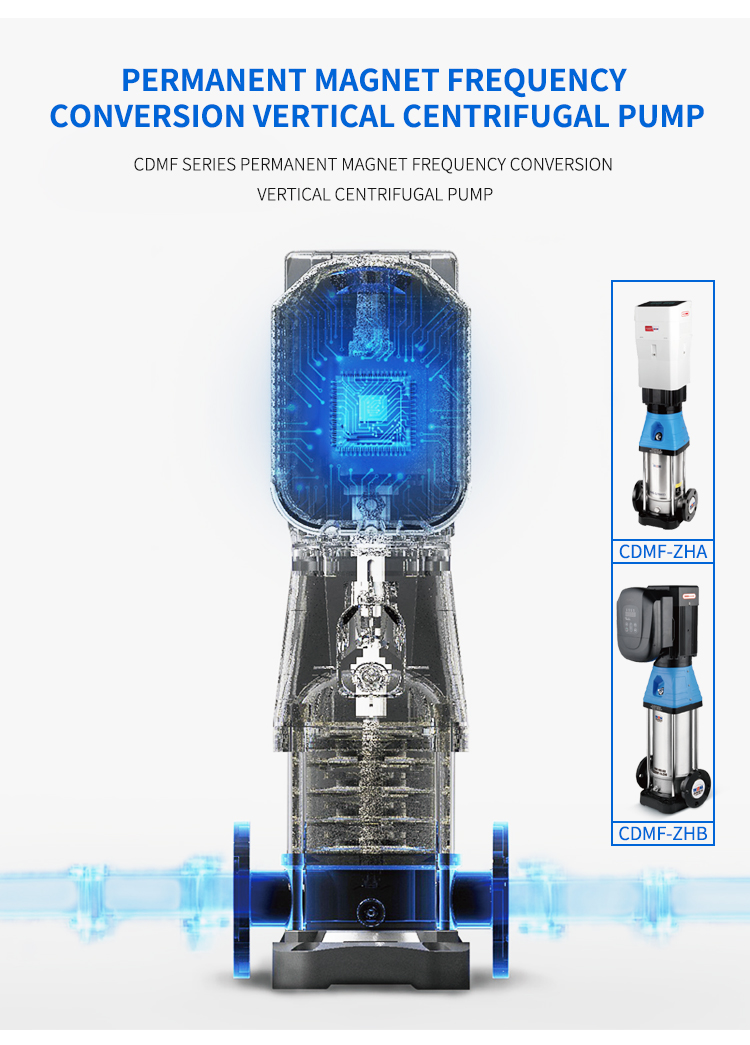

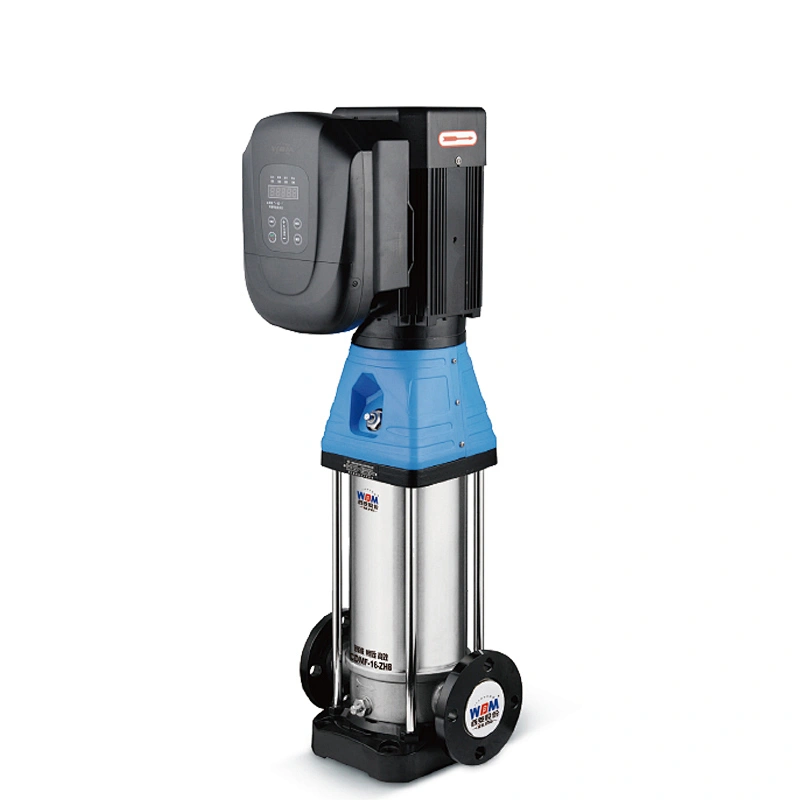

intelligent permanent magnet frequency conversion constant pressure vertical centrifugal pump

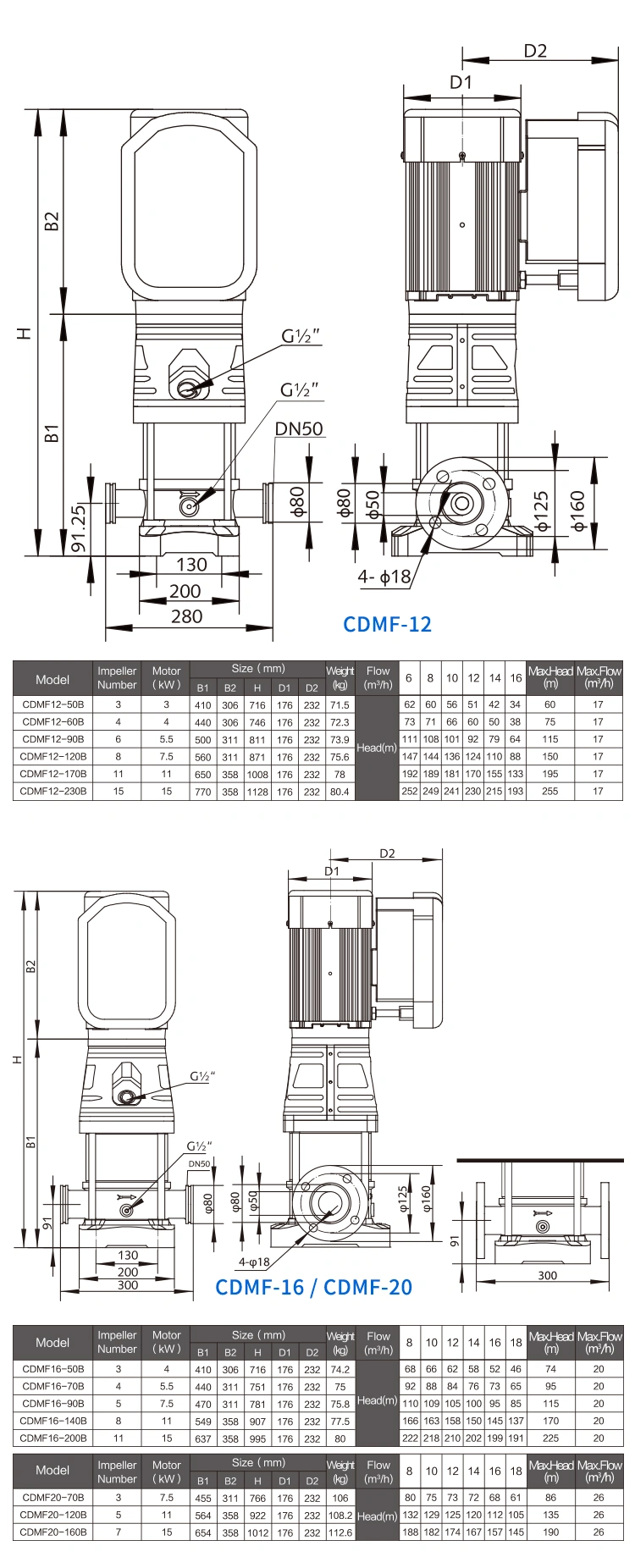

Model NO.
CDMF12-230-ZHB
Delivery:
FOB
Quantity:
  • Product name:intelligent vertical centrifugal pump
  • Model:CDMF12-230-ZHB
  • Voltage:220V
  • Speed:500-5000r/min
  • Head:255m
  • Flow rate:17m3/h
  • Material:Stainless Steel

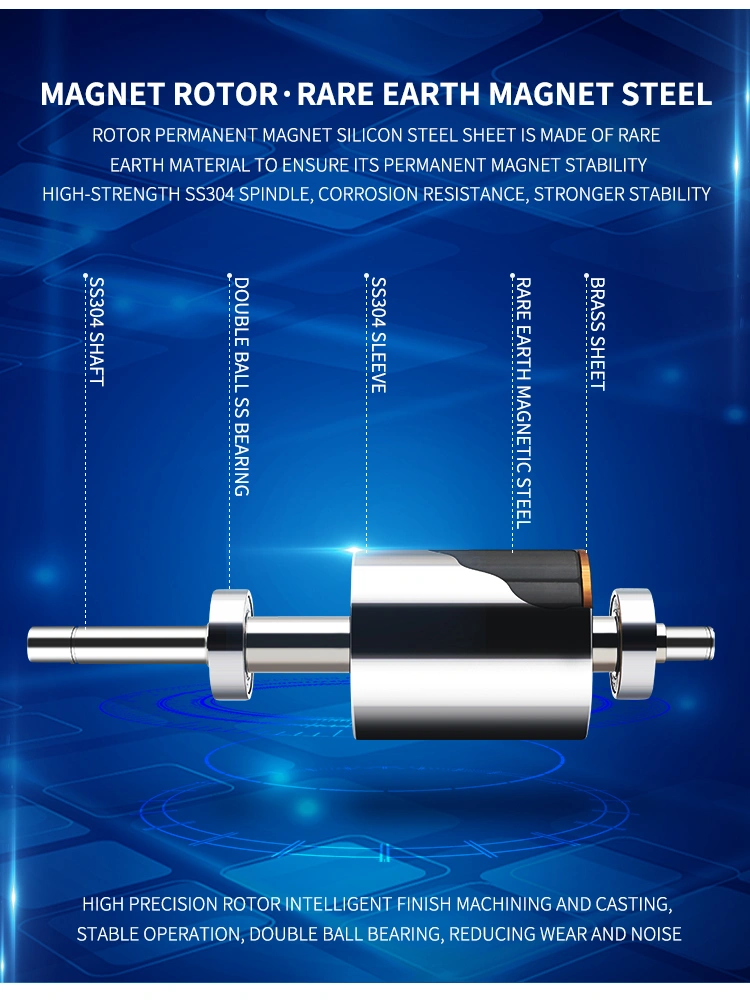

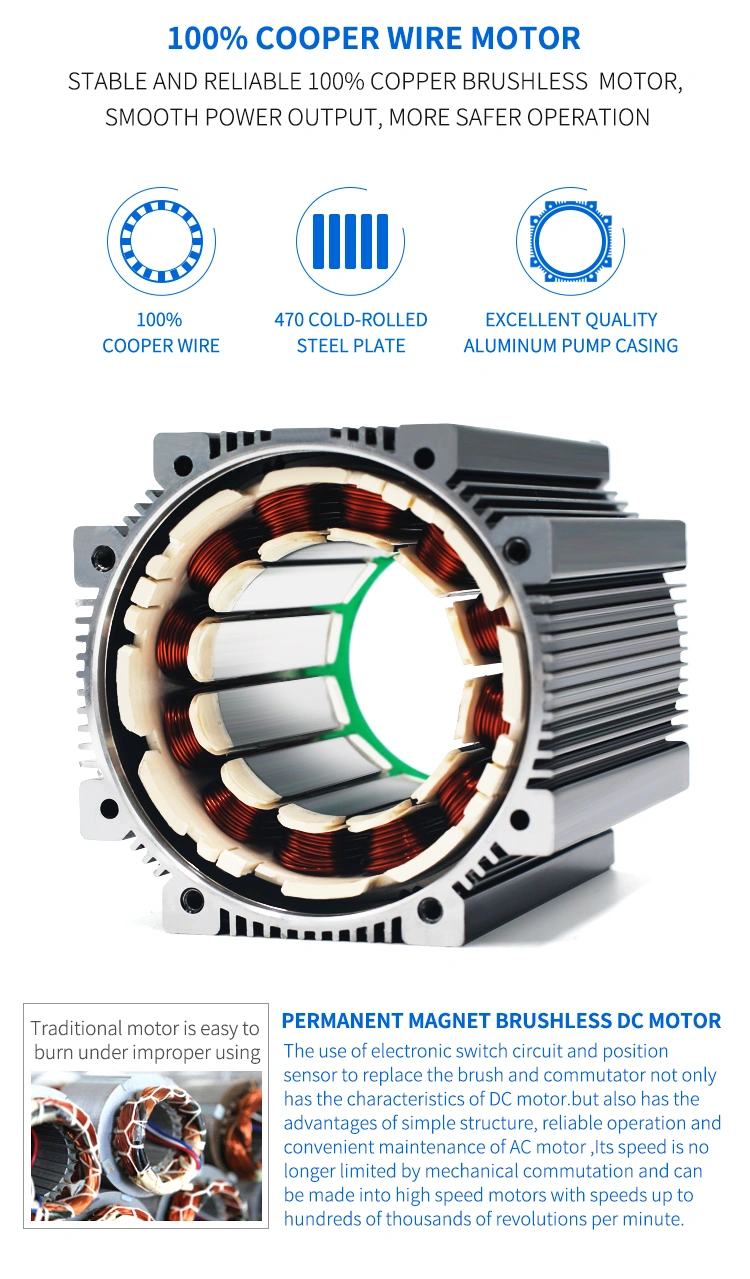

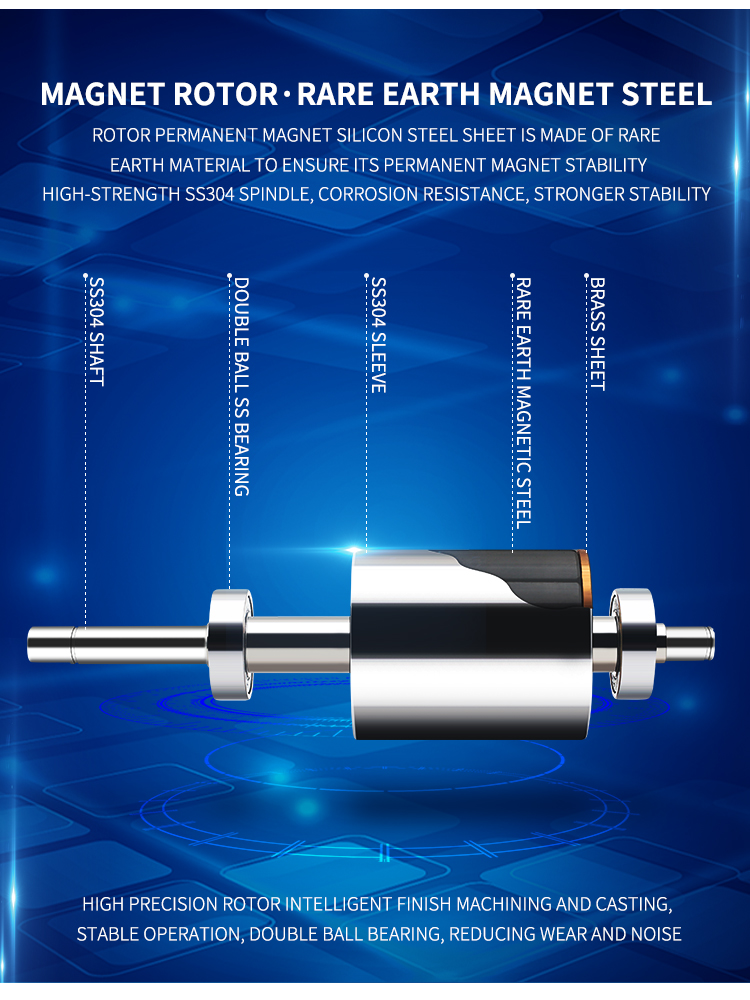

  • Motor:Permanent Magnetic SYnchronous Motor

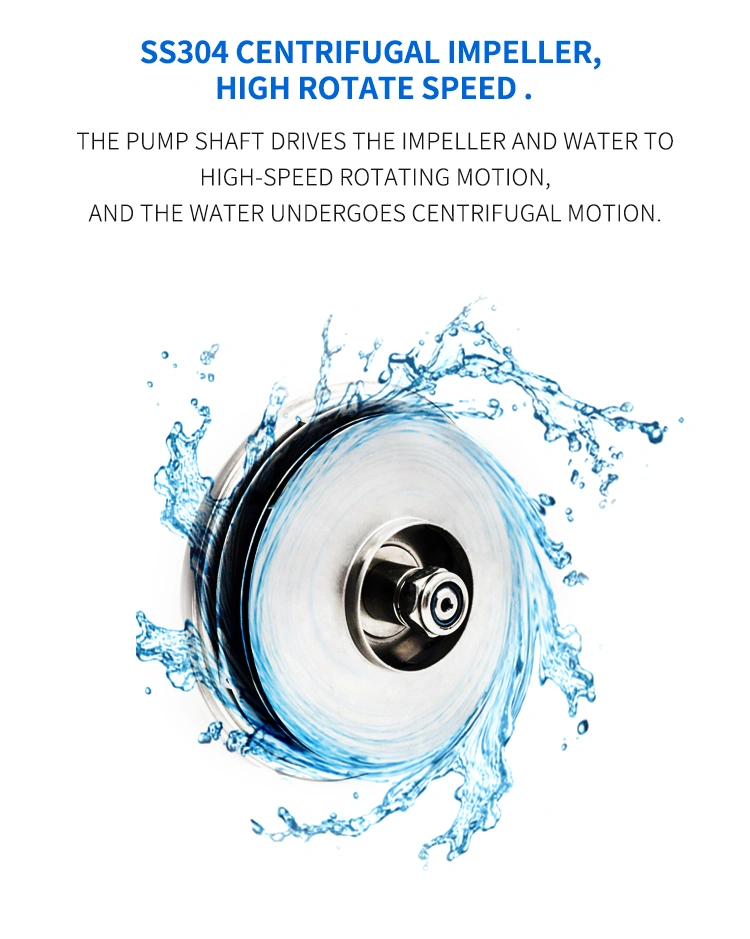

  • Impeller:Stainless Steel
  • Warranty:2 Years
  • Application:Commercial Buildings
  • Application:Family Homes
  • Application:Industrial Boilers
  • Application:Industrial Utilities
  • Application:Irrigation and Agriculture
  • Application:Marine
  • Application:Water Treatment Solutions
  • Power Source:Electric
  • Structure:Single-stage Pump
  • Certification:ce
  • Place of Origin:CN;ZHE
  • Brand Name:WDM
  • Model Number:CDMF12-230-ZHB
  • Horsepower:20HP
  • Pressure:constant pressure
  • Outlet Size:2inch
  • Voltage:180V-260V
  • Power:15kW

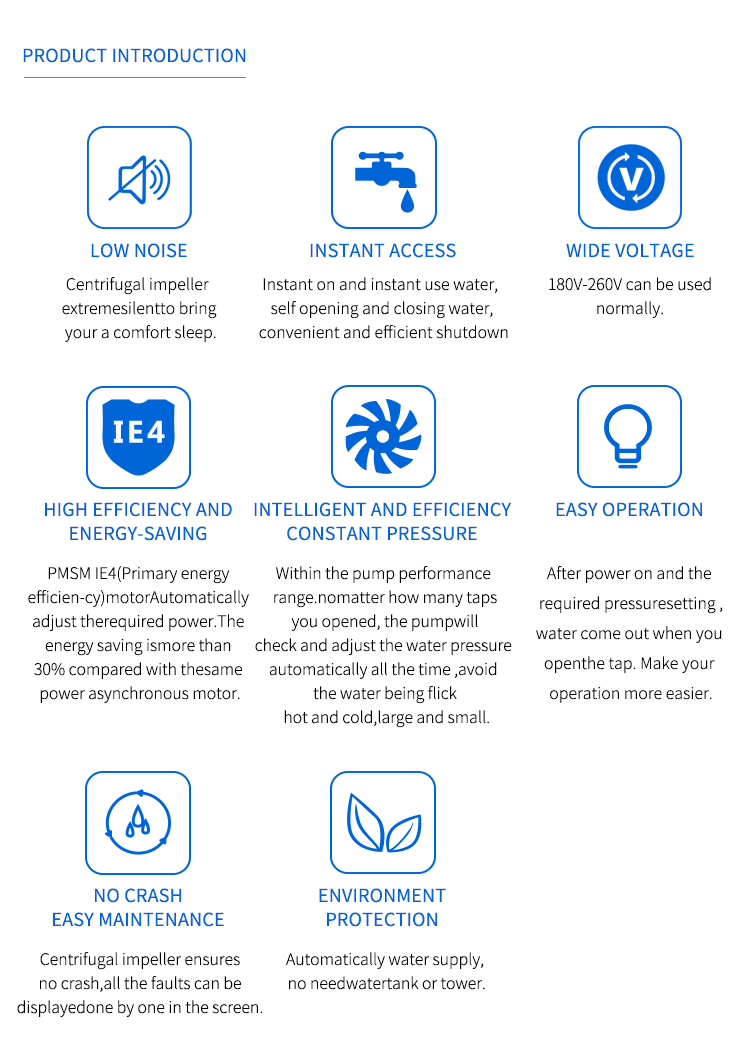

PRODUCT INTRODUCTION

CDMF are the products of multiple functions,applicable for transporting various different media from tap water to industrial liquids and suitable for different ranges of temperatures, flow and pressure ,CDMF is applicable for lightly corrosive liquids.

APPLICATION

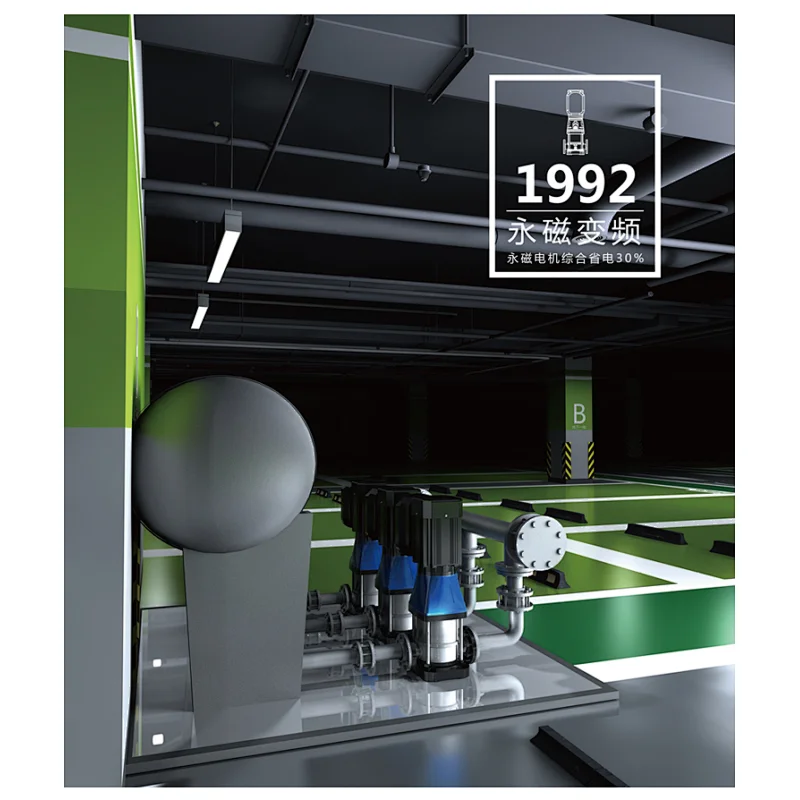

Water supply:filtration and transfer at waterworks.distribution from waterworks, pressure boostng in main pipes,pressure boosting in high-rise buildings and hotels ,etc.

Industry boosting: process water systems,washing and cleaning systems,vehicle washing tunnels,fire fighting system,etc.

Liquid transfer :cccling and air-conditioning system,reverse osmosis systems,distillation system, separators,swimming bath,etc.

Irrigation :field irrigation,sprinkler irrigation,drip-feed irrigation,etc.

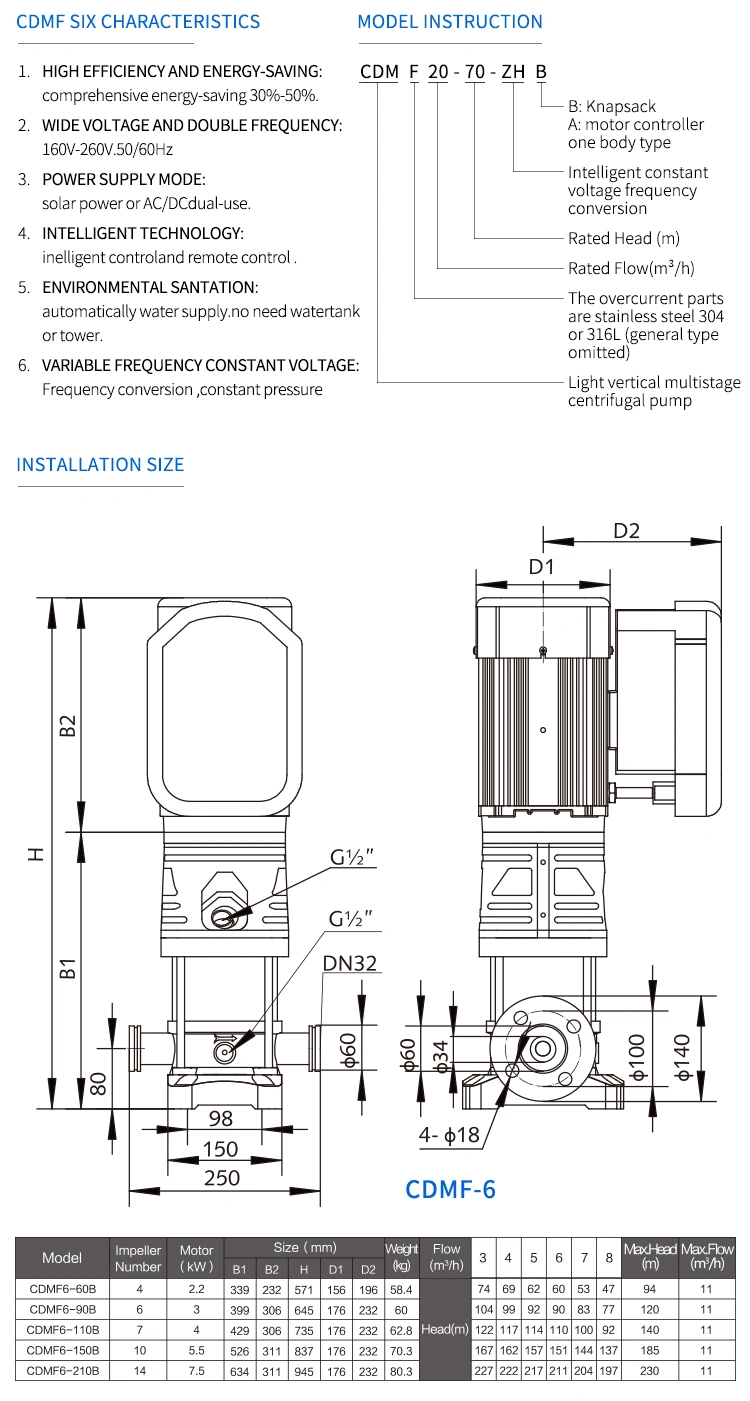

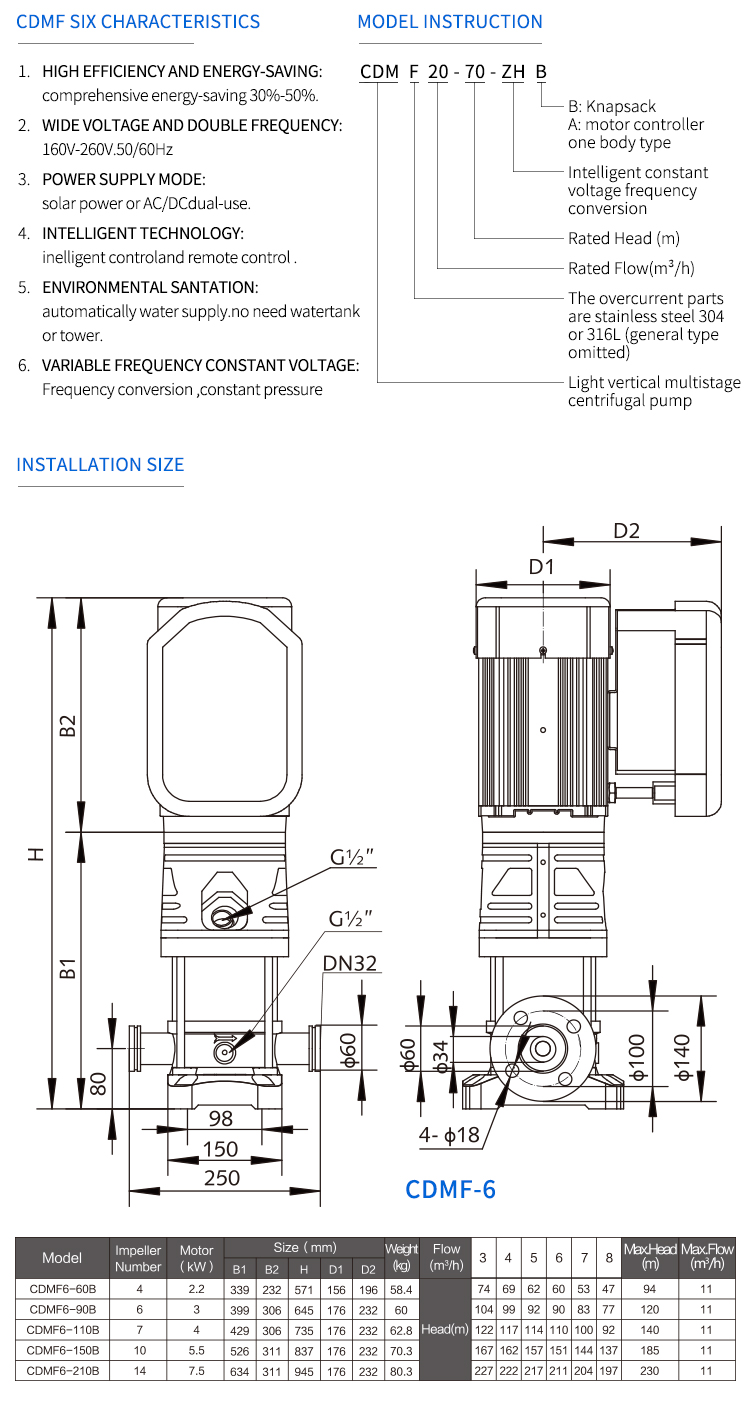

6+ ADVANTAGES

1.High efficiency and energy-saving .comprehensive energy-saving 30%-50%.

2.Wide voltage and double frequency (160V-260V,50/60HZ).

3.Solar power or AC/DC dual -use.

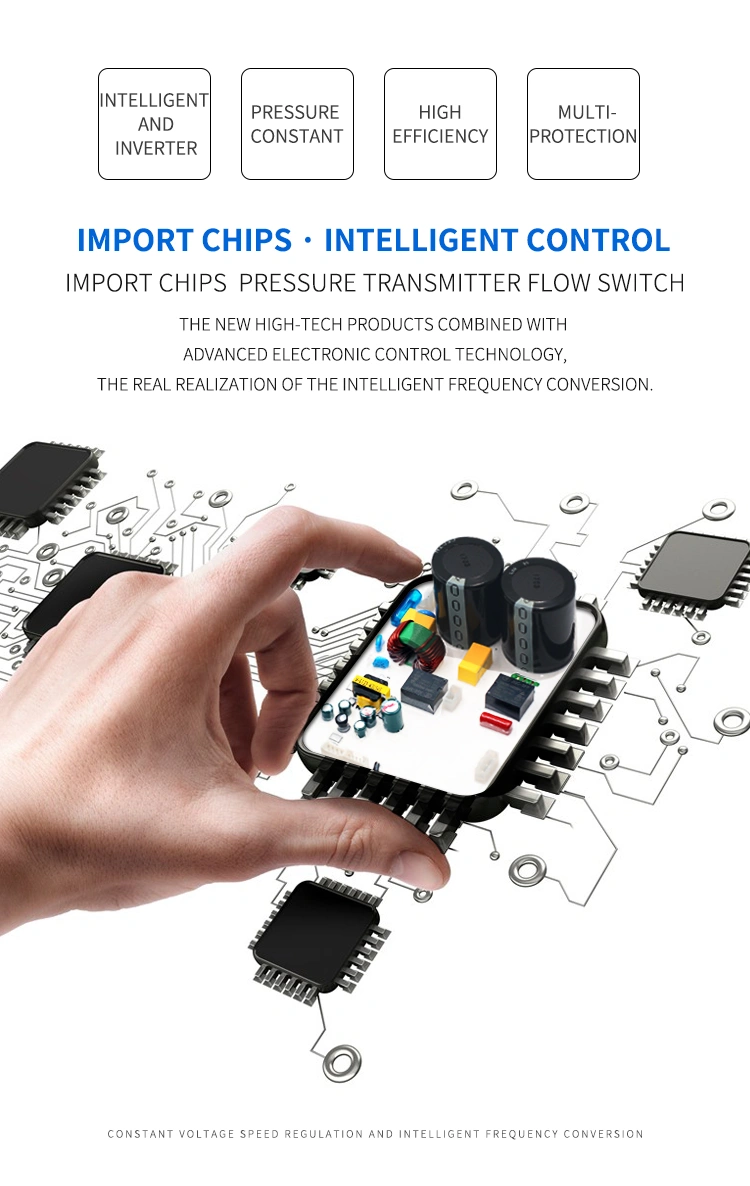

4.Intelligent control and remote control .

5.Automatically water supply,no need watertank or tower.

6.Frequency conversion,constant pressure.

14+ KINDS OF FAULTS ALARM

1. Low-water 2. Leakage 3.Blocking 4.Motor fault 5. Inlet water pressure transmitter

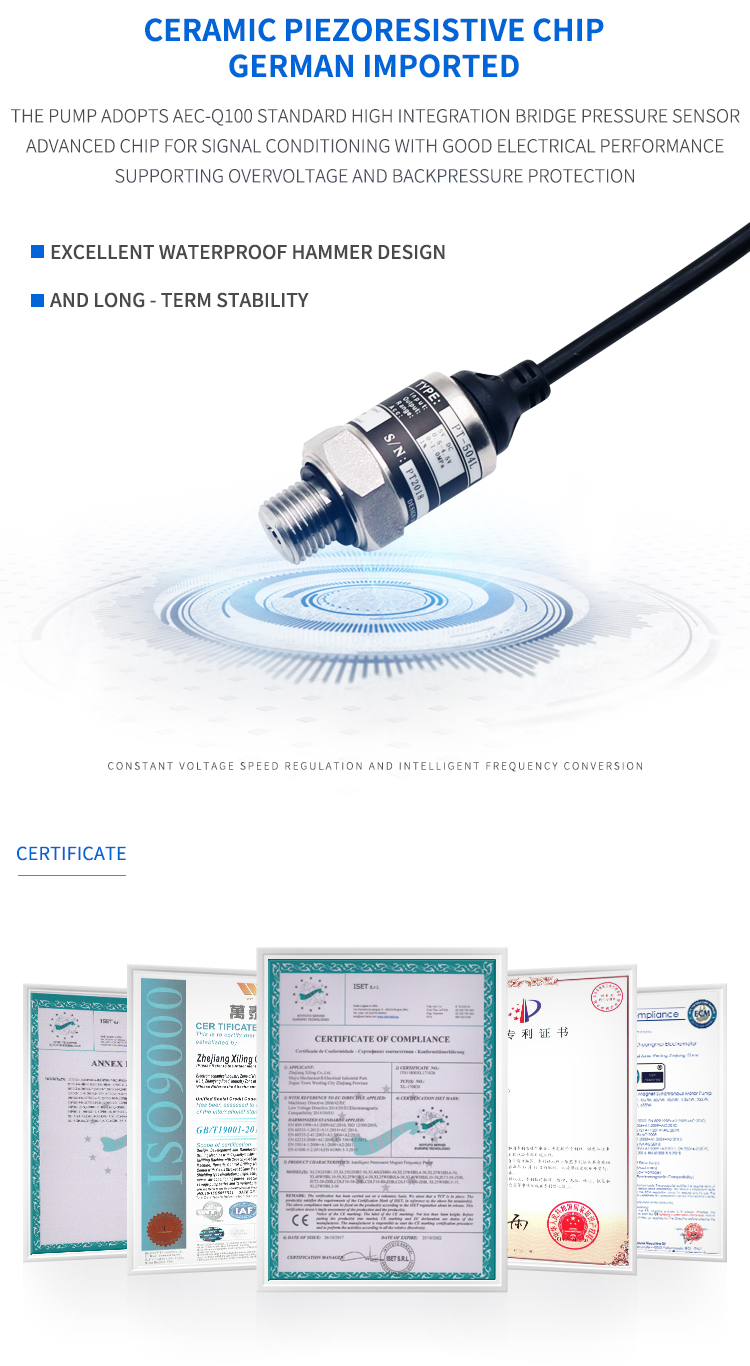

6. Outlet water pressure transmitter 7. Water flow switch 8. Driver 9.Water temperature sensor

10. Pump heating 11. Voltage fault 12. Drive board overheated 13 .Motot overheating 14. The pressure set is unreasonable
